Oscillators

  • September 1, 2022

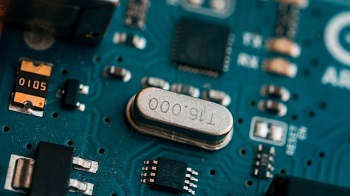

A circuit that generates a continuous, repetitive, and alternating waveform without receiving any input is referred to as an oscillator. Oscillators, in their most basic form, take unidirectional current flow from a DC source and transform it into an alternating waveform at a frequency that is determined by the circuit components that make up the oscillator.

Types of Oscillators

Oscillators can also be categorized into a wide variety of varieties, depending on the parameter that is taken into consideration, such as the feedback mechanism, the shape of the oscillator's output waveform, and so on.

Sinusoidal Oscillators

An output signal in the form of a sine wave is generated by a sinusoidal oscillator. In an ideal scenario, the signal at the output has a fixed amplitude and does not change in frequency at any point. In point of fact, one typically obtains something rather different than this. The degree to which the ideal can be reached is determined by a number of parameters including the class of operation of the amplifier, the properties of the amplifier, the frequency stability, and the amplitude stability.

Sine-wave generators produce sounds with a frequency spectrum that spans from extremely low audio frequencies to extremely high radio and microwave frequencies. RC oscillators are a common type of low-frequency generator. These oscillators are formed by connecting resistors and capacitors together to build their frequency-determining networks. They find widespread application in the realm of audio frequencies.

Inductors and capacitors are used in the construction of the frequency-determining network of another variety of sine-wave generator. The LC oscillator is the name given to this particular type. The higher radio frequencies typically make use of LC oscillators, which are similar to tank circuits in their operation. They are not appropriate for use as extremely low-frequency oscillators due to the fact that the inductors and capacitors needed for such a device would be of a large size, weigh a lot, and be expensive to produce.

Nonsinusoidal Oscillators

Complex waveforms, such as square, rectangular, trigger, sawtooth, or trapezoidal, are produced by nonsinusoidal oscillators. Because their outputs are typically characterized by an abrupt change, or relaxation, they are frequently referred to as relaxation oscillators. This is because of the nature of their outputs. The charge or discharge period of a capacitor that is connected in series with a resistor is typically responsible for dictating the signal frequency of these oscillators. However, there are other varieties that include inductors that have an effect on the output frequency. Consequently, the frequency of oscillation can be calculated using both RC and LC networks, just like it can be done with sinusoidal oscillators. Multivibrators, blocking oscillators, sawtooth generators, and trapezoidal generators are all examples of the type of nonsinusoidal oscillators that fall under this umbrella term.

Applications of Oscillators

Some common applications of oscillators are in quartz watches, radio, TV, and other communication devices. Oscillators are also used in computers, decorative lights, metal detectors, alarms and buzzes, audio and video systems, and many others.

Chip 1 Exchange offers many options for Oscillators from different suppliers and manufacturers worldwide like Geyer Electronic, Hong Kong Crystal, and Jauch Quartz. Chip 1 guarantees no delay in delivery of its top-quality electronic and semiconductor products to its customers.
